DEUTA REDsafe - Safety Unit with SIL Certification

Train Protection with DEUTA REDsafe

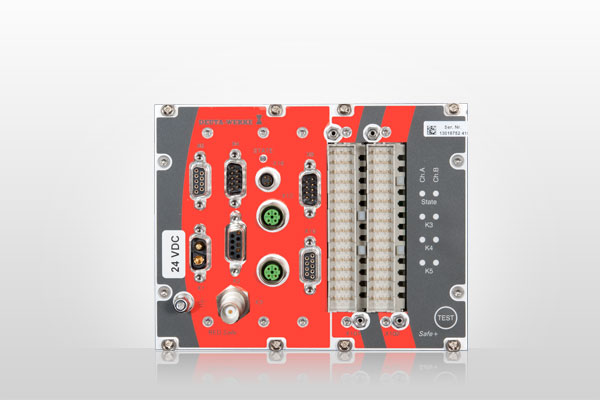

DEUTA REDsafe, Multifunktions-Rekorder mit SIL-Zertifizierung ist eine autarke Plattform für SIFA-Funktionen, REDBOX

With its various integration options, the DEUTA REDsafe is ideally suited for the installation in trams, locomotives and working vehicles. The cassette is mounted as a stand-alone unit in a 19“ rack. It is incorporated as a safety module in the train protection, e.g. in the PZB environment.

Driver’s Safety Device (DSD) and further functions

The travel data recorder REDsafe is a closed platform for DSD functions. It corresponds to the requirements of the UIC 641 and other rail standards with additional safety functions such as:

DSD
detection of standstill
rollback protection
speed thresholds (e.g. Vmax, Vgrenz)
monitoring of speed signals
safe speed transmission – analogue
safe speed transmission – via bus system
safe changing of parameters during the drive

We are happy to support you also with other requirements.

Safe Control Unit (SCU): functional safety up to SIL3

The SCU of the DEUTA REDsafe is designed with a 2-channel structure and independent processors as well as control relays. In this way, SIL conformity of safety functions up to level 3 is made possible, depending on integration. As required, REDsafe can transmit all occurring status messages to a superordinate system. MVB buses, CAN or Ethernet can be used for this.

Flexible configurations

The design of the DEUTA REDsafe allows for high flexibility in configuration, parametrisation and in application, e.g. as time-time or distance-distance DSD.

Die REDsafe replaces the ES122 DSD conforming to operator procedures. Alongside project relevant safety functions, it provides additional service and diagnostic functions, such as status info via Ethernet connection.
